Black interlocking garage floor tiles with a bright pink border laid in a car wash bay

Modular Flooring

ABC Interlocking Garage Floor Tile (400 × 400 × 18 mm)

A garage floor you can lay in an afternoon, hose down, and change one tile at a time.

Vented polypropylene interlocking floor tile, 400 × 400 × 18 mm, for garages, workshops, wash bays and utility floors. Click-together dry-lay installation, no adhesive and no cure time.

Tile size: 400 × 400 × 18 mm
Material: Polypropylene (PP)
Coverage: 6.25 tiles per m² (approx. 0.58 tile per sq. ft.)
Surface: Vented open grid, anti-slip diamond texture
Installation: Dry-lay interlocking, no adhesive required
Colours: White, black, red, blue, green

The customer problem

Epoxy and poured coatings mean grinding, priming, days of cure time and a permanent result. Water, salt and oil sit on the surface, and a chipped or stained area cannot be repaired without redoing the whole floor.

The ABC approach

ABC uses a vented 18 mm polypropylene tile that snaps together dry. Liquids drain through the grid, the floor is walkable immediately, and any damaged tile pops out and is replaced individually.

Each tile is moulded in one piece of polypropylene with an open grid surface that lets water, dust and debris drain through instead of pooling under a vehicle. Tiles snap together edge to edge at 6.25 tiles per square metre, so a floor is laid out row by row and can be extended, lifted for cleaning or repaired one tile at a time. The anti-slip diamond texture, waterproof body and colour range (white, black, red, blue, green) let you lay borders, parking pads and two-tone patterns without any cutting on a standard layout. Sold as is, in the colours and format shown.

Key features

Snaps together dry — no adhesive, no cure time
Open grid drains water, dust and debris
Anti-slip textured surface
Waterproof, wear-resistant polypropylene
Five colours for borders and two-tone layouts
Individual tiles lift out and are replaced

Applications

Residential and commercial garages
Car wash and detailing bays
Home workshops and hobby areas
Home gyms, sheds and utility rooms
Trade show, showroom and event floors

Specifications

Specifications
Tile size	400 × 400 × 18 mm
Material	Polypropylene (PP)
Coverage	6.25 tiles per m² (approx. 0.58 tile per sq. ft.)
Surface	Vented open grid, anti-slip diamond texture
Installation	Dry-lay interlocking, no adhesive required
Colours	White, black, red, blue, green
Key properties	Waterproof, wear-resistant, anti-slip, easy to rinse clean
Intended use	Interior garage, wash bay, workshop and utility floors

Options

— Available in white, black, red, blue and green

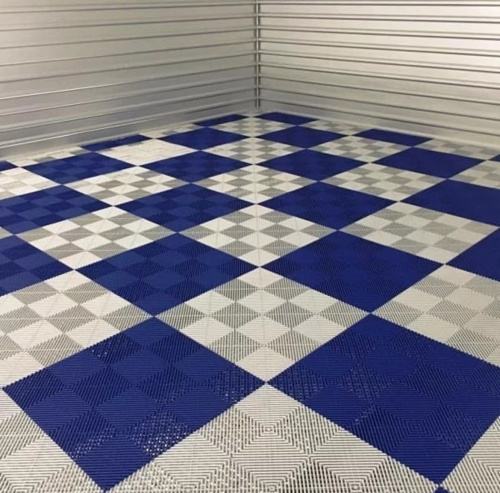

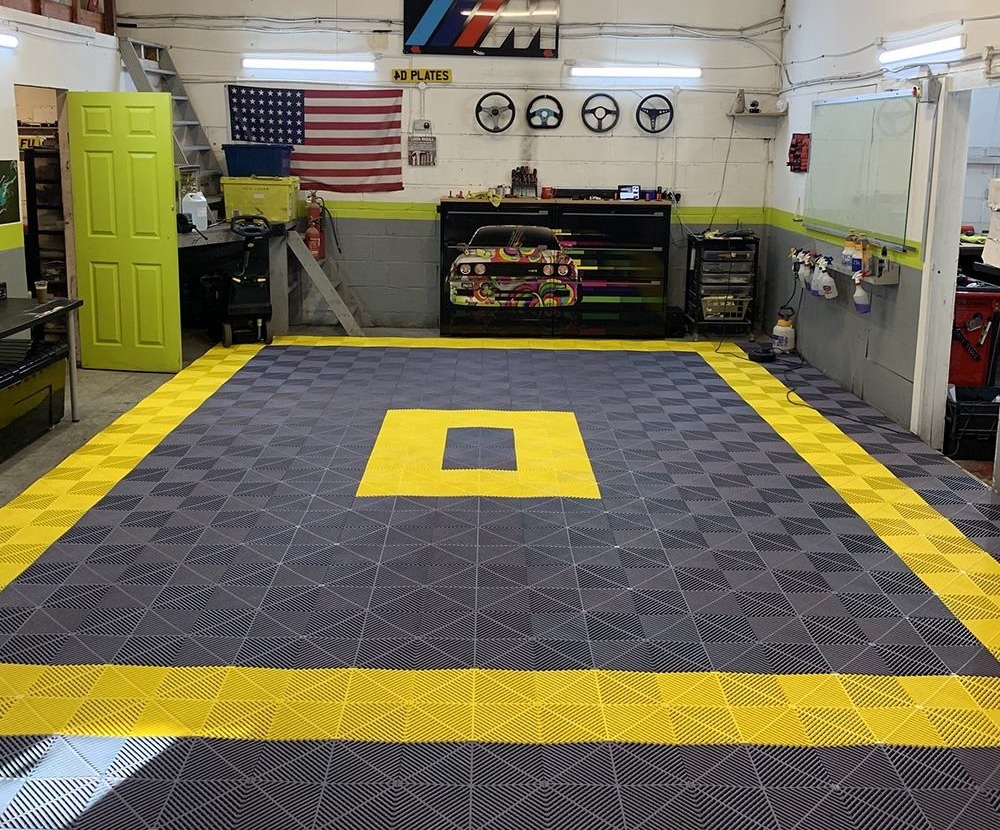

— Mix colours for borders, parking pads and checkerboard layouts

Installation overview

Dry-lay over a clean, dry and reasonably flat interior slab. Start in a corner, snap each tile into the previous one by hand or with light foot pressure, and work row by row. No adhesive, underlay or cure time is required, and the floor is walkable as soon as it is laid. Tiles lift out for cleaning underneath or for replacement.

Packaging and retail overview

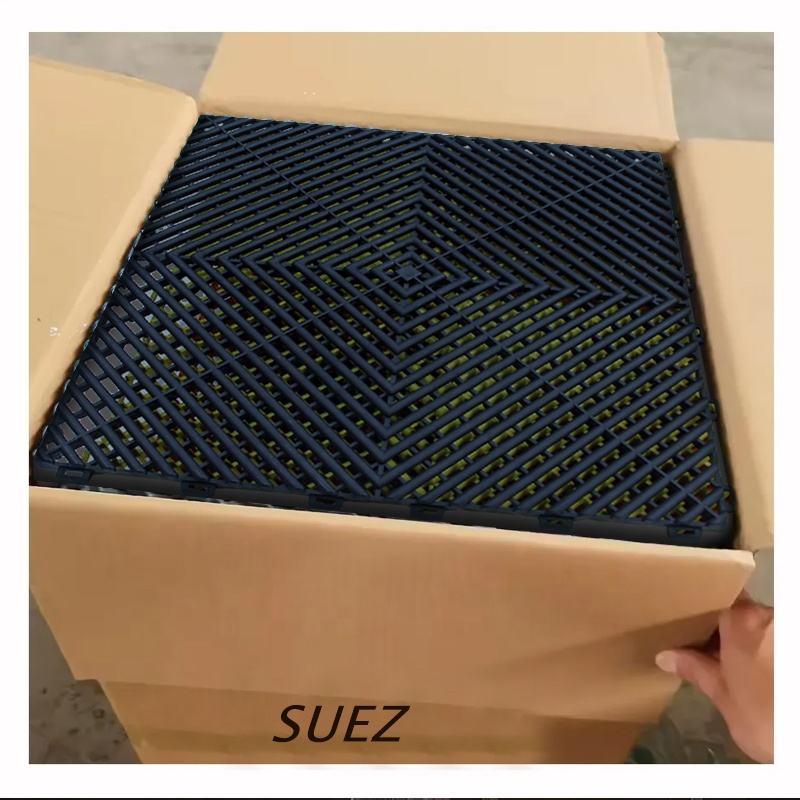

Supplied in standard cartons of approximately 44 × 42.5 × 68 cm. Sold by the tile so a room can be measured at 6.25 tiles per square metre and topped up later in the same colour.
